GDQ-J-A pneumatic high vacuum baffle valve

GDQ-J-A pneumatic high vacuum baffle valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

GDQ-J-A Series Normally Closed Pneumatic High Vacuum Flapper Valve is a solenoid steering valve which relies on compressed air as the starting and closing power of the valve plate. When power is lost or compressed air is lost, the valve under the diameter of DN80 will automatically close the valve by spring force. The valve above DN100 will quickly close the original air of the cylinder through the solenoid valve group using one-way valve. The source pressure reaches the automatic closing valve. Thus, the function of rapidly cutting off the airflow in the vacuum system is achieved. The GDQ-J type is the angle pass type, and the GDQ-S type is the three way with the pre draining.

The GDQ-J-A series normally closed pneumatic high vacuum baffle valves are suitable for working air and non corrosive gases.

Main technical parameters

適用范圍(Pa)
105~1.3x10-4
閥門漏率(Pa.L/S)
≤1.3x10-5
介質(zhì)溫度(℃)
-25~+80(密封材料為丁腈橡膠)
-30~+150(密封材料為氟橡膠)
氣源壓力(MPa)
0.4~0.8
安裝位置
DN<300任意,dn≥300垂直< div="">
電源電壓
標準出廠:AC220V/50Hz
特殊指定:AC110V;DC24V;DC12V等
信號反饋
標準出廠:不帶反饋信號
特殊指定:磁性開關DC/AC5~240V

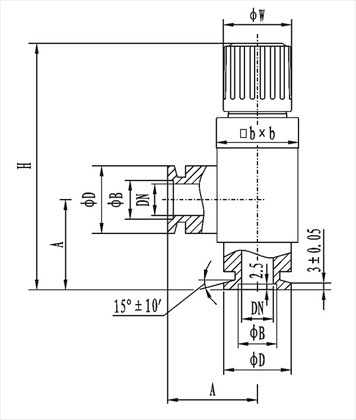

Main shape connection dimensions
型號
通徑(DN)
ΦD
ΦB
A
法蘭標準
GDQ-J10A/KF
10
30
12.2
30
GB4982
GDQ-J16A/KF
16
30
17.2
40
GB4982
GDQ-J25A/KF
25
40
26.2
50
GB4982
GDQ-J40A/KF
40
55
41.2
65
GB4982
GDQ-J50A/KF
50
75
52.2
70
/
活套法蘭連接尺寸
型號
通徑(DN)
ΦD
ΦB
A
n-ΦC
DNy(預抽口)
法蘭標準
GDQ-J50A
50
110
90
70
4-Φ9
/
GB/T6070
GDQ-J63A
63
130
110
88
4-Φ9
/
GB/T6070
GDQ-J80A
80
145
125
88
8-Φ9
/
GB/T6070
GDQ-J100A
100
165
145
108
8-Φ9
/
GB/T6070
GDQ-J125A
125
200
175
128
8-Φ11
/
GB/T6070
GDQ-J(S)150A
150
220
195
138
8-Φ11
DN40(GB4982)
JB919
GDQ-J(S)160A
160
225
200
138
8-Φ11
DN40(GB4982)
GB/T6070
GDQ-J(S)200A
200
285
260
200
12-Φ11
DN50(GB/T6070)
GB/T6070
GDQ-J(S)250A
250
335
310
208
12-Φ11
DN50(GB/T6070)
GB/T6070
GDQ-J(S)300A
300
380
350
250
8-Φ14
DN80(GB/T6070)
JB919
GDQ-J(S)320A
320
425
395
250
12-Φ14
DN80(GB/T6070)
GB/T6070
GDQ-J(S)400A
400
510
480
330
16-Φ14
DN100(GB/T6070)
GB/T6070
①GDQ-J(S)400A
400
500
465
330
16-Φ14
DN100(GB/T6070)
JB919
GDQ-J(S)500A
500
610
580
360
16-Φ14
DN125(GB/T6070)
GB/T6070
GDQ-J(S)600A
600
710
670
450
12-Φ21
DN160(GB/T6070)
JB919
GDQ-J(S)630A
630
750
720
450
20-Φ14
DN160(GB/T6070)
GB/T6070
GDQ-J(S)800A
800
920
890
520
24-Φ14
DN200(GB/T6070)
GB/T6070
注:采用JB919法蘭連接標準,其側(cè)口同樣為GB/T6070標準

The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。
