CS15/45H free floating ball trap

CS15/45H free floating ball trap
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

CS15H-16C, CS45H-16C free semi-floating ball steam trap: internal thread connection (CS15H-16C), flange connection (CS45H-16C), semi-floating ball structure, seat sealing surface material for Cr13 series stainless steel, nominal pressure PN16, valve body material for carbon steel steam trap. The free semi floating ball steam trap is one of the most reliable traps in the mechanical trap. Its internal structure has only one semi-floating spherical barrel as a moving part, opening downward, semi-floating spherical barrel after fine grinding, the entire spherical surface can be sealed. Long service life, water hammer resistance, no vulnerable parts, no fault, durable, no steam leakage, energy saving effect is good. The free semi floating ball steam trap is used for steam heating equipment and steam pipe network condensate recovery system.


CS15H自由半浮球式蒸汽疏水閥
CS45H自由半浮球式蒸汽疏水閥


CS15H-16C, CS45H-16C free semi-floating ball steam trap: internal thread connection (CS15H-16C), flange connection (CS45H-16C), semi-floating ball structure, seat sealing surface material for Cr13 series stainless steel, nominal pressure PN16, valve body material for carbon steel steam trap. The free semi floating ball steam trap is one of the most reliable traps in the mechanical trap. Its internal structure has only one semi-floating spherical barrel as a moving part, opening downward, semi-floating spherical barrel after fine grinding, the entire spherical surface can be sealed. Long service life, water hammer resistance, no vulnerable parts, no fault, durable, no steam leakage, energy saving effect is good. The free semi floating ball steam trap is used for steam heating equipment and steam pipe network condensate recovery system.
型號
PN
工作壓力/MPa
適用溫度/℃
適用介質
CS15H-16C
16
1.6
≤350
蒸汽、水
CS45H-16C
16
1.6
≤350
蒸汽、水


Material of main parts


型號
閥體材料
CS15H-16C
WCB
CS45H-16C
WCB

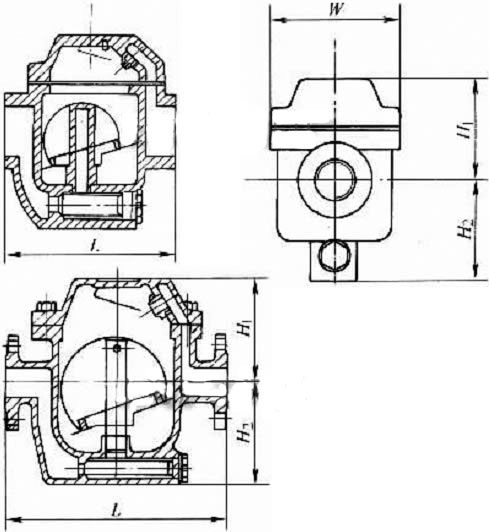

Main dimensions


型號
DN
L
H1
H2
W
CS15H-16C
15
170
75
93
120
20
170
75
93
120
25
170
75
93
120
32
210
95
155
160
40
210
95
155
160
50
210
95
155
160
CS45H-16C
15
230
75
93
120
20
230
75
93
120
25
230
75
93
120
32
270
95
155
160
40
270
95
155
160
50
270
95
155
160
CS45H-16(AA)
65
380
177
172
290
80
380
177
172
290
100
380
177
172
290
