ZFQ-1 explosion-proof fire stop breathing valve

ZFQ-1 explosion-proof fire stop breathing valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

ZFQ-1 explosion-proof and flame-retardant breathing valve This product integrates flame arrester and breathing valve. Its novel structure is the first one in China. It is a necessary new type of safety equipment for petrochemical storage tanks. Its greatest advantages are good fire resistance and breathing performance, light weight and convenient maintenance. This product is suitable for the storage of Class A oils with an internal point below 28 C and Class B oils with a flash point below 60 C, such as gasoline, benzine, kerosene, light diesel oil, engine oil, crude oil and other oils with the same properties. It works normally in the temperature environment of - 35 60 C.

Performance and characteristics

1. The shell is made of cast steel and aluminum alloy with good corrosion resistance.

2. The corrugated flame retardant layer is made of stainless steel with good fire resistance and good corrosion resistance.

3, simple structure, easy maintenance, safe and convenient.

Maintenance and maintenance

1. In order to use the breathing valve safely, the corrugated flame retardant layer should be removed regularly within 3-6 months and cleaned to ensure the smooth flow of each hole in the flame retardant layer, prevent blockage and ensure safe and normal use.

2. Check regularly whether the positive and negative valve discs of ventilation are flexible and the contact sealing surfaces of guide rods and discs are damaged. If damaged, replace them immediately.

3. When checking and maintaining the reinstallation, ensure that all the joints in the valve are tightly coordinated and the valve plate is flexible.

4. When new valve is activated, shock proof material should be installed before clearance valve disc, otherwise the breathing valve will fail.

Main technical parameters

A級正壓
355Pa 36毫米水柱
負壓
295Pa 30毫米水柱
B級正壓
980Pa 100毫米水柱
負壓
295Pa 30毫米水柱
C級正壓
1765Pa 180毫米水柱
負壓
295Pa 30毫米水柱
零部件材料
閥體材料
碳鋼WCB、不銹鋼304、316、鋁合金
正壓閥盤材料
不銹鋼304、316、鋁合金
負壓閥盤材料
不銹鋼304、316、四氟PTFE
環境溫度℃
-30~60
操作壓力 Pa
-295~98000 -30mmH2O~+10000mmH2O

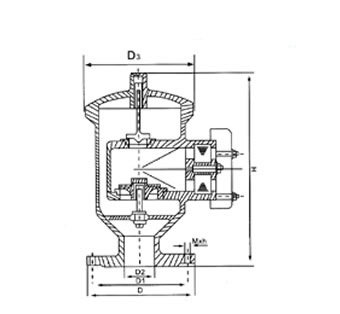

主要外形連接尺寸
國標法蘭連接外形尺寸: GB、JB
規格
安裝尺寸(mm)
D1
D
D3
H
M-h
DN50
110
140
160
255
4×12
DN100
170
205
235
480
4×16
DN150
225
260
295
547
8×16
DN200
280
315
355
658
8×16
DN250
335
370
420
705
12×16
美標法蘭連接尺寸:ANSI、API、ASME 可供JIS標準
規格
安裝尺寸(mm)
D1
D
D3
H
M-h
2"
120.5
152
160
255
4×19
4"
190.5
229
265
290
8×19
6"
241.5
254
305
330
8×22
8"
298.5
343
355
350
8×22
10"
362
406
420
400
12×25
